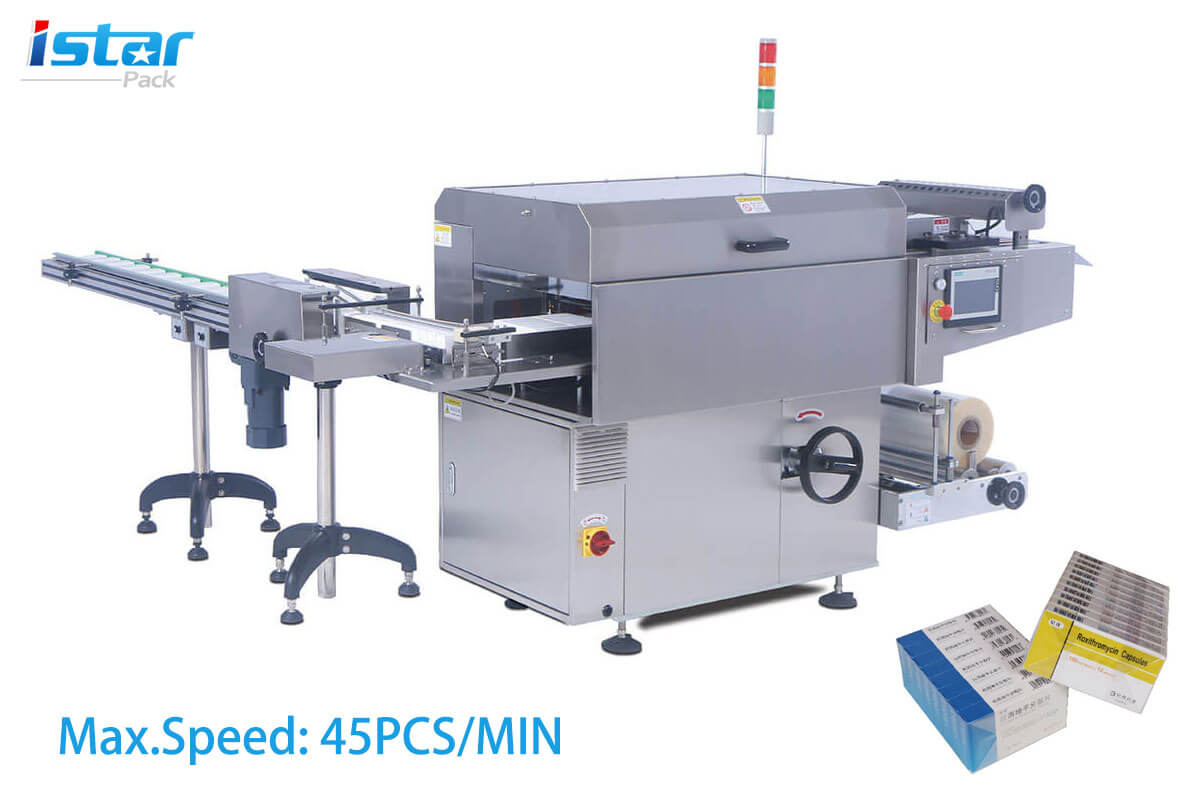

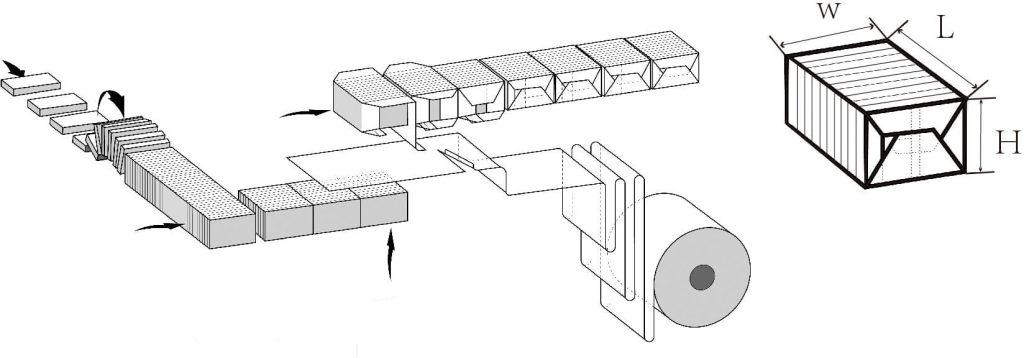

The DTS-450 model is base seal Overwrapping machine, with speed of up to 45 packs per minute. The machine is controlled by PLC, driven by cam, easy to maintain, and simple to operate. It is suitable for Collating, stacking and overwrapping small pharmaceutical cartons.

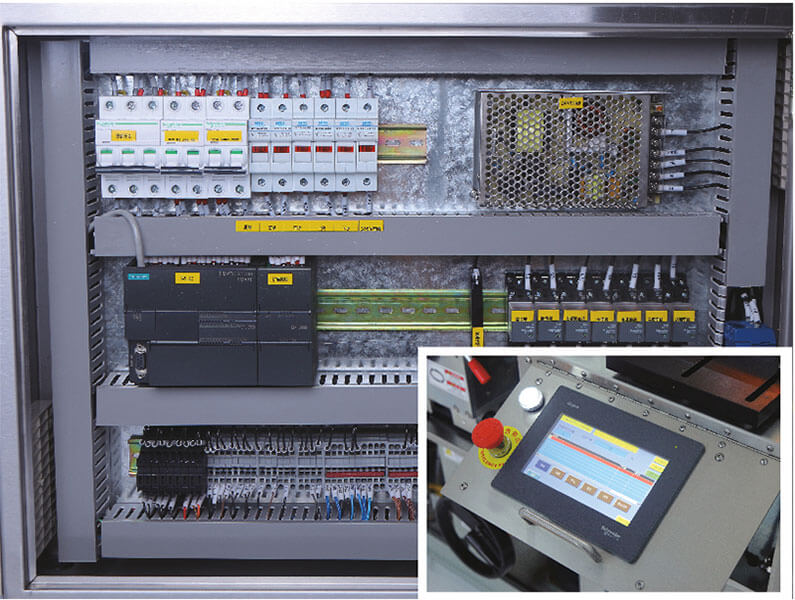

PLC Control System

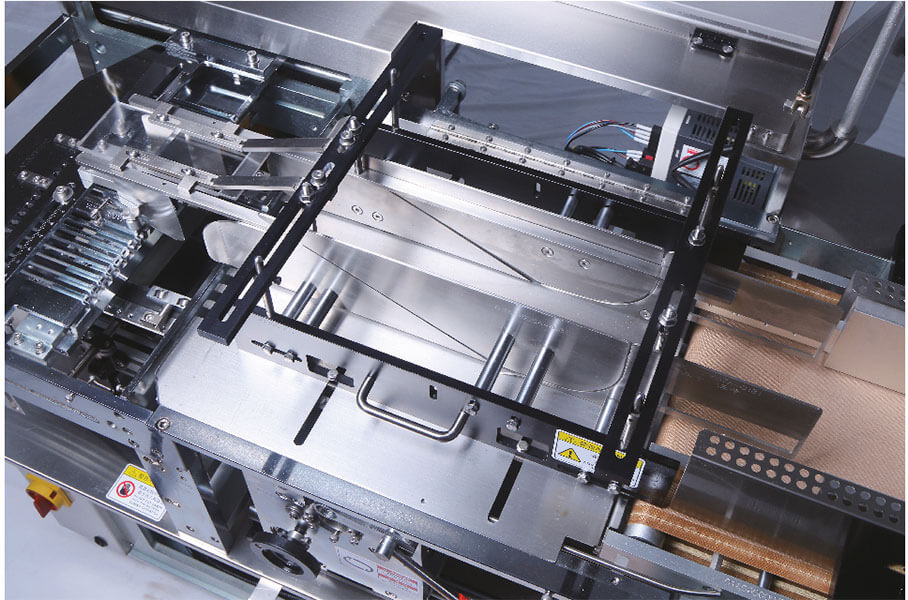

Quick Changeover System

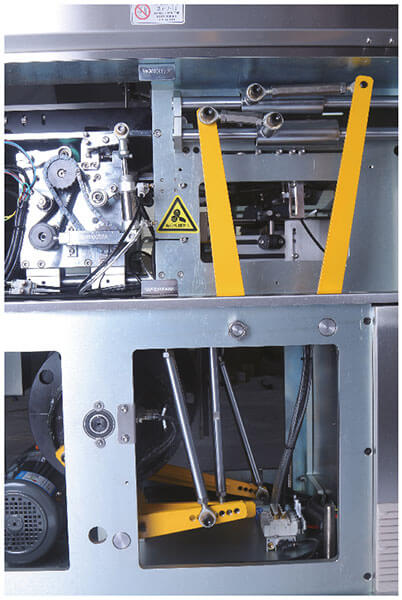

Cam Drive

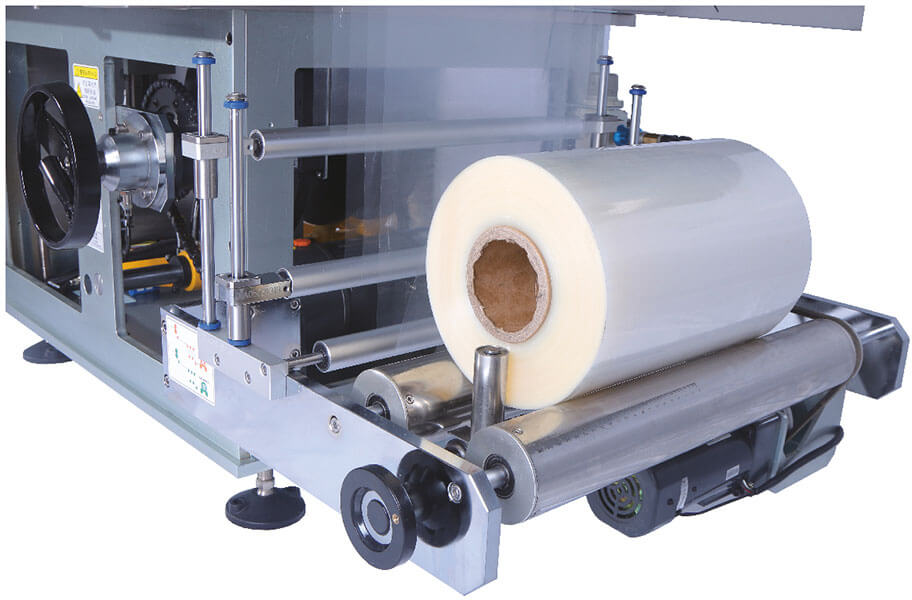

Side Loading Film Spindle
| Model | DTS-450 |
|---|---|
| Packing Speed | 10-40 PCS/MIN |
| Packing Size | L: 90-300mm; W: 60-240mm; H: 40-90mm |
| Packing Material | BOPP Film, PVC |
| Voltage Supply | 380V 50/60HZ |
| Total Power supply | 4.0KW |
| Working Pressure | ≥0.6mpa 20m3/h |
| Overall Dimension | (L)2500×(W)800×(H)1200mm |
| Machine Weight | 800KG |
